Earthing Accessories

U-Bolt is a metal fixing in the shape of the letter U which has a pin bolt or screw bolt closure to it which fix across the two ends making a closed clamp. Material – Gunmetal / Brass U BOLT – Copper / CopperAlloy / Stainless Steel

U Bolt – Rod Clamp

Normal Rod Dia.	Hole Centres mm
5/8"	37
3/4"	37
1"	37
1.1/4"	43
1.1/2"	54
2"	64

U Bolt – Rod To Cable Clamp – ‘SCE’

Normal Rod Dia.	Conductor Range mm2
9.5	6 – 35
14	16 – 95
5/8"/16mm	16 – 95
3/4"/20mm	70 – 300
1"/25mm	70 – 185

U Bolt – Rod To Cable Clamp – ‘GUV’

These are used for Connecting Rod to Cable. Available with different Rod & Cable Size

Normal Rod Dia.	Conductor Range mm2
5/8"	16
3/4"	20
1"	25

U Bolt For Rigid Pipe & Cables – ‘PUB’

These U Bolts are used for universal parallel or 90 degree cable connection to rod or pipe.

Normal Rod Dia.
3/8"
3/4"
1"

U Bolt – Rod To Tape Clamp

Normal Rod Dia.	Tape Size mm
5/8"	16
3/4"	20
1"	25

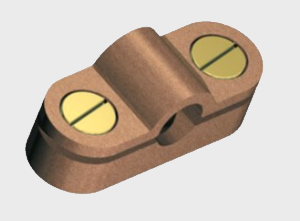

Heavy Duty Cast Cable Saddle

These are used with 8 mm conductor or for supporting Air Terminals when used in conjuction with wall mounted Air Terminal base. We Manufacture Heavy duty cast cable saddles made from Gunmetal and Brass. We also export all kind of Heavy Duty Cast Cable Saddle, which are mainly used for the fixing of the copper cable.

Material – Gunmetal / Brass

For Solid Conductor Size MM 8, 10, 12, 16

For Stranded Conductor Size mm2 – 50, 70, 95

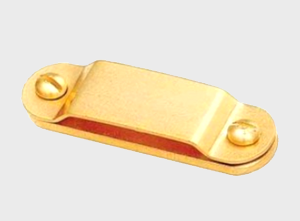

Tape Clip / Brass Tape Clip / Aluminium Tape Clips & Copper Tape Clip

We manufacture and export Tape clips made from Brass, Copper or Aluminium. Our range of Earthing Lightning Protection also includes this tape clip. These are used with Bare Copper Tape. Used to support Tape to structure.

Material – Copper / Brass / Aluminum

Conductor Size mm – 20 x 3, 25 x 3, 50 x 6

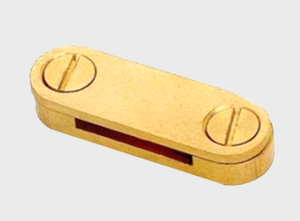

DC Tape Clip

We manufacture and export Dc tape clip. Our range of Earthing Lightning Protection also Dc tape clips / Dc tape clamps. These are made of Brass or Gunmetal..These are used with Bare Copper Tape Conductor. Used to secure Tape to structure.

Material – Gunmetal / Brass

Conductor Size mm –

20 x 3, 25 x 3, 25 x 4, 25 x 6,

40 x 3, 40 x 6, 50 x 3, 50 x 6

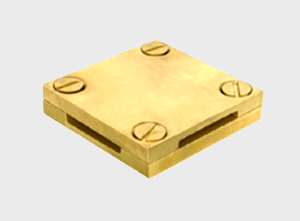

Square Tape Clamp

We manufacture and export Square tape clamp / Square tape clips. Our range of Earthing Lightning Protection also include Square tape clamp. These clamps are made of Brass / Gunmetal. These are suitable for 4 Way Connections, Straight, Through or Tee Joints for Copper Tape.

Material – Gunmetal / Brass

Conductor Size mm – 25 x 3, 25 x 4, 25 x 6, 50 x 6
